GH-30 Diversion Gates
Stop Gates and Stop Logs for Precise Water Flow Control
Golden Harvest, Inc. offers Stop Gates and Stop Logs designed to provide reliable water flow blockage and incremental control in open channels. With lightweight aluminum or durable stainless steel construction, these gates ensure strength, flexibility, and long-lasting performance, making them ideal for a wide range of water management applications.
Stop Gates

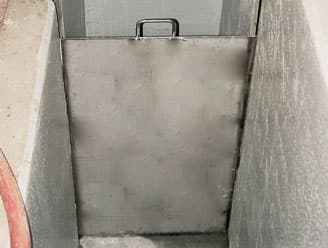

Stop Gates are designed to effectively block water flow in open channels while maintaining structural integrity under designed head conditions.
Durable Construction: Fabricated from lightweight aluminum for ease of handling or stainless steel for increased durability in harsh environments.
Reinforced Design: Includes robust reinforcements to minimize deflection under pressure.
Customizable Frames: Guide frames fit seamlessly into channel structures and can be equipped with neoprene seals for a watertight solution.
Ease of Handling: Stop gates are available with either fixed handles or slot grips for manual placement. Lifters can also be included for easier installation and removal.
Stop Gate Models:
GH-31: Stainless Steel
GH-30: Aluminum with UHMW Seats
GH-36: Aluminum with UHMW Seats and P-Seals
Stop Logs

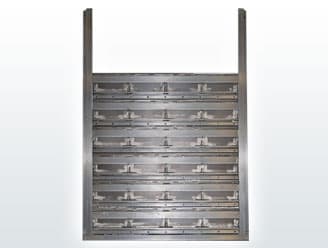

Stop Logs provide incremental water flow control through a modular, sectional design, allowing for precise adjustments to channel flow.
Modular Design: Each log is fabricated in separate sections, enabling incremental control similar to weir gates.
Material Options: Constructed from lightweight aluminum or stainless steel for increased durability and corrosion resistance.

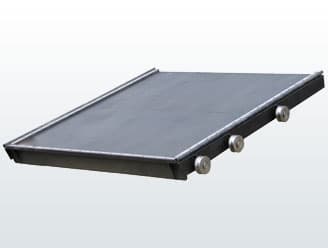

Reinforced Strength: Designed with reinforcements to limit deflection under pressure. Each log features an extruded neoprene seal held in place by a bolted retainer bar for easy field replacement.

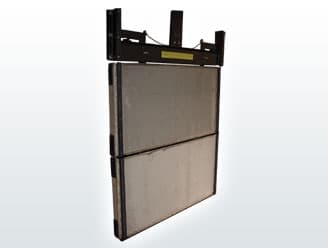

Ease of Installation: Heavier logs can be paired with lifters for mechanical hoisting and smooth placement.
Flexible Guide Frames: Guide rails are available for embedded, flat-back, or channel mounting.
Stop Log Models:
GH-34: Stainless Steel
GH-33: Aluminum
Key Features
Water Diversion Gates: Provide reliable water blockage and flow control for open channels.
Stainless Steel and Aluminum Construction: Ensures long-term performance in diverse environments.
Flexible Design: Customized to meet specific project needs and applications.
Ease of Use: Designed for manual or mechanical handling for convenient installation and removal.
Applications
The GH-30 Diversion Gates and Stop Logs are ideal for:
Water diversion and flow control in open channels.
Incremental water management for irrigation systems and water treatment facilities.
Situations requiring robust, lightweight, and easy-to-handle gates or logs.
Golden Harvest, Inc. combines innovation and craftsmanship to deliver superior water management solutions. Contact us today to discuss how our Stop Gates and Stop Logs can enhance your project’s performance and efficiency!
