GH-8000 Radial Gates
Reliable Flow Control for Large-Scale Applications
The Golden Harvest, Inc. GH-8000 Radial (Tainter) Gates are engineered for exceptional performance in managing flow control for flood control, hydropower projects, and large conveyance systems. Designed primarily for overflow service, these gates offer versatile functionality with optional top seals for shutoff applications when required.
Innovative and Robust Design
Golden Harvest Radial Gates feature advanced structural design for efficient and reliable operation:

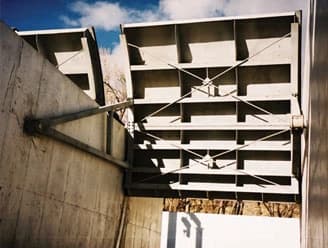

Precision Hydraulic Load Distribution: The curved disc efficiently transfers hydraulic loads through robust spanning ribs to radial arms, which then direct the load into trunnion pins and abutments for maximum stability.
Tight Seal Performance: Resilient seals along the bottom and sides ensure a secure closure. Optional horizontal top seals are available with breast wall designs for added versatility.
Durable Mounting Components: Stainless steel sill and side plates are flush-set into concrete, providing a smooth and durable sealing surface for long-lasting performance.
Efficient Operation

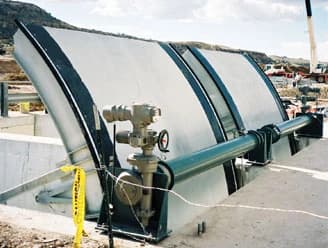

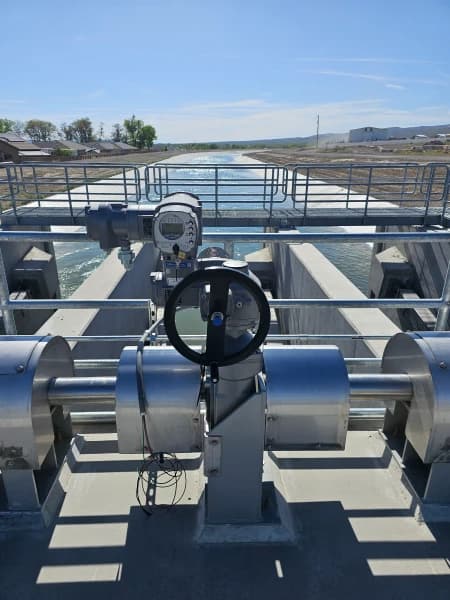

Flexible Hoisting Options: Gates are operated using tandem cable drum hoists, coupled with electric or manual actuators for precise control.
Advanced Gear Systems: Manual and electric lifts are equipped with self-locking worm gearboxes to ensure secure operation.
Automation Ready: Actuators are available with position indicators, limit and torque switches, and automated controls for seamless opening and closing adjustments.
Key Features
Versatile Flow Control: Ideal for open channel or spillway applications.
Enhanced Water Management: Increases upstream water elevation and storage capacity.
Reliable Flow Diversion: Designed for smooth and efficient redirection of water flow.
Low Maintenance Design: Built for long-term performance with minimal upkeep.
Applications
Flood control projects
Hydropower operations
Critical water management systems
Contact us today to learn more about how the GH-8000 Radial Gates can optimize your water management infrastructure!
